ESP32-TV Version 3
I think we're almost there! It's all working...
I’ve finished testing the boards - and this may be the first time I haven’t had to add any bodge wires!
Fixed in this version:
USB2244 and ESP32 USB conflict. We’ve added a MOSFET to keep the USB2244 reset line low so it doesn’t try and grab the USB data lines.
Battery charging. I’ve fixed the slightly silly error where the USB 5V was being sent straight to the battery. Check out the previous video for details on this.
New additions to the board:

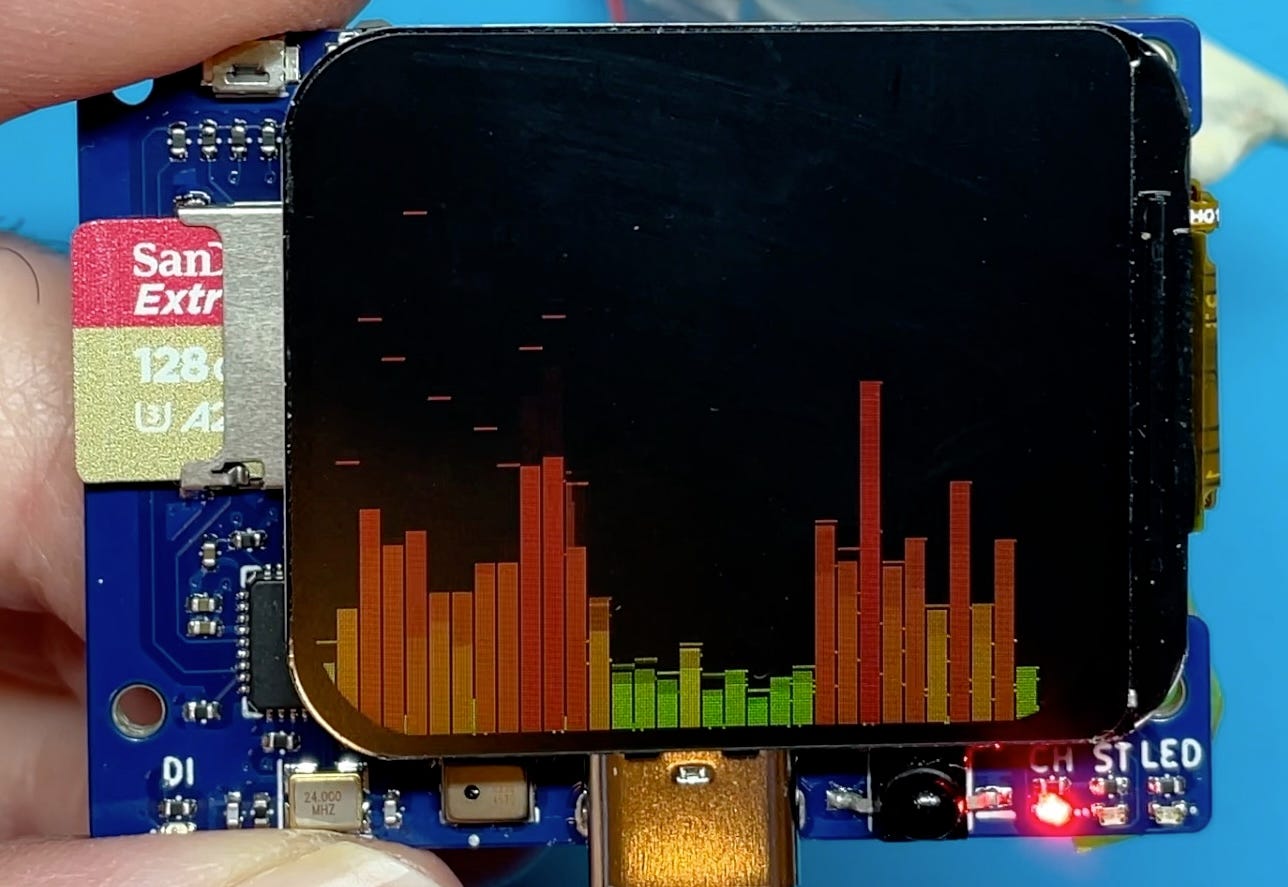

We now have a microphone!
Not sure what we’ll do with this yet - but it opens up some fun projects!
