TinyTV Teardown

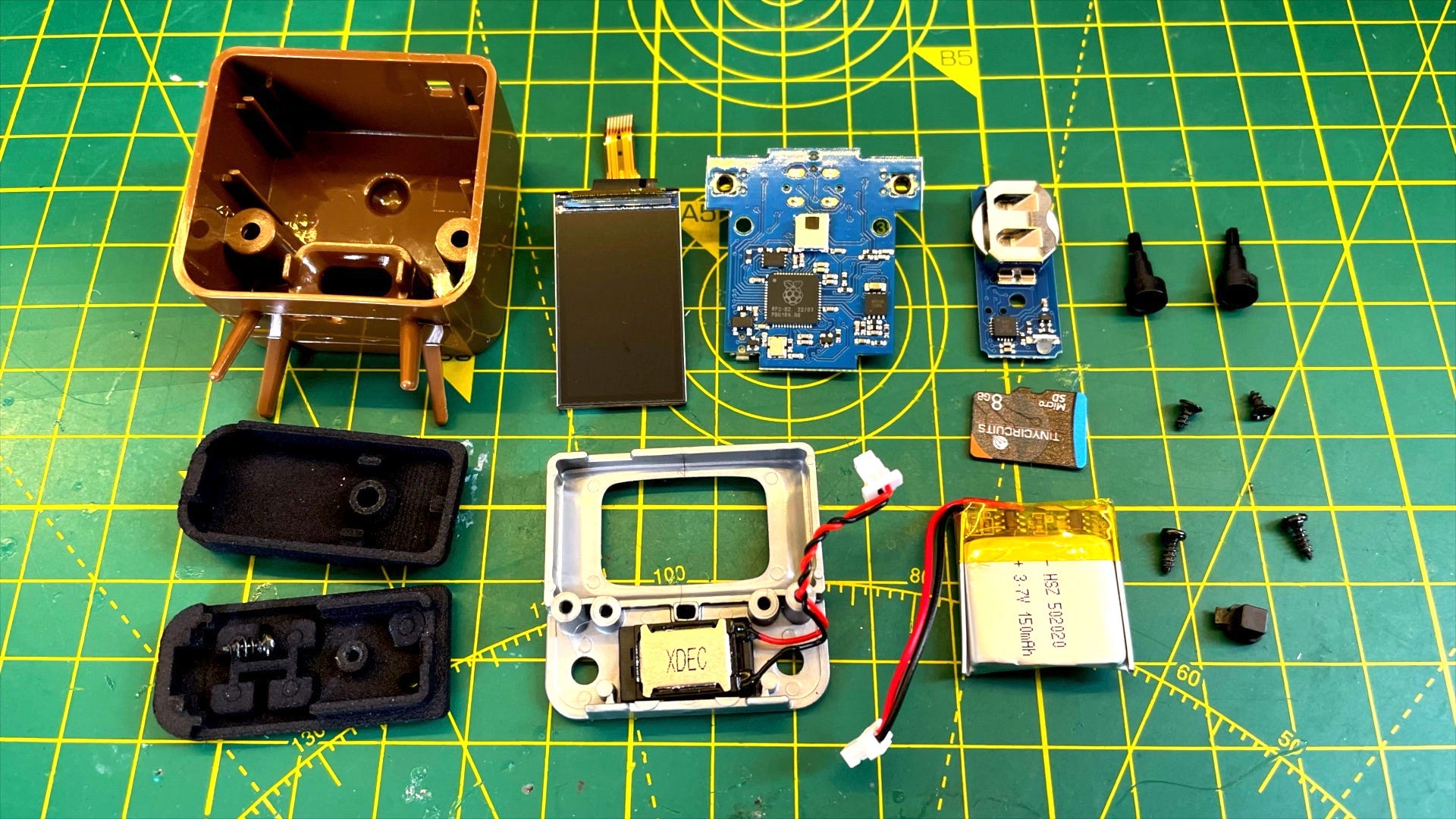

It's a tiny tv! Let's see what's inside.

This is a pretty fun bit of kit. I backed it on Kickstarter back in October 2022! It’s all based around an RP2040.

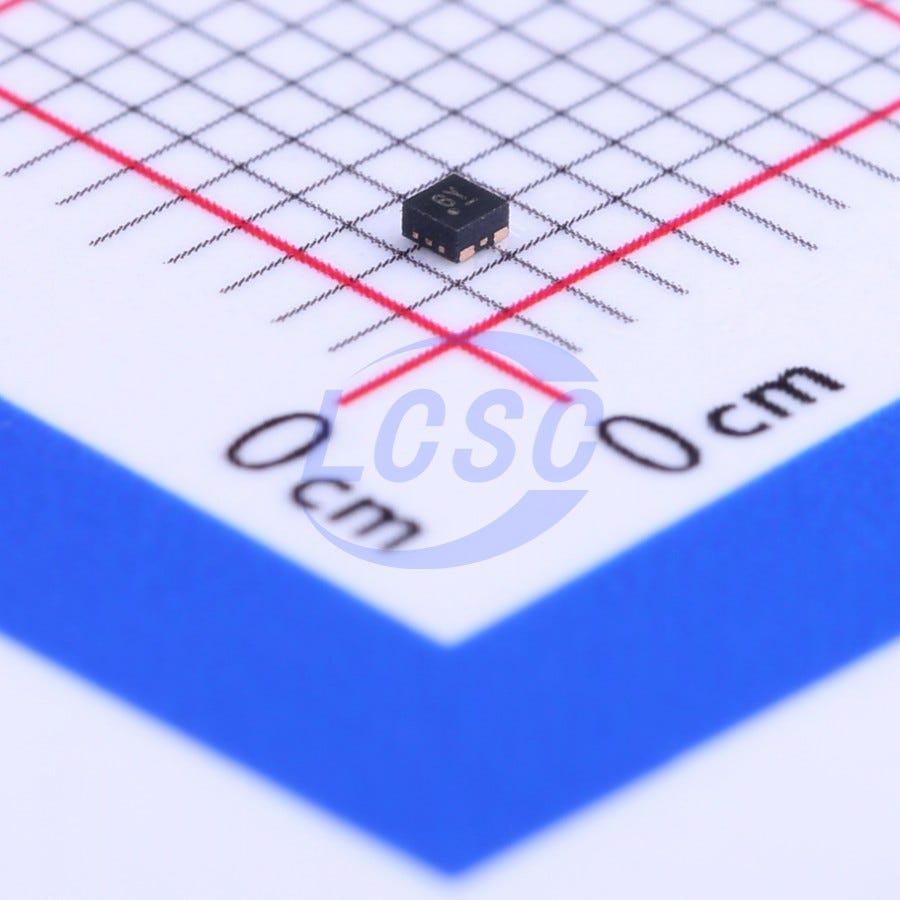

There are some pretty interesting bits. The remote control uses an ATtiny441 and I’m really impressed by the incredibly tiny 3v3 Low Dropout Regulator - it’s 1mm square!

I’m going to try and make my own version - which is why I’ve been messing around so much with minimal ESP32 dev boards. I’ve got a bunch of bits on order from AliExpress (speakers, screens etc…) and PCB on order with PCBWay. It’s going to be a fun project
